DS-7716NI-I4/16P(B)
DS-7716NI-I4/16P(B)

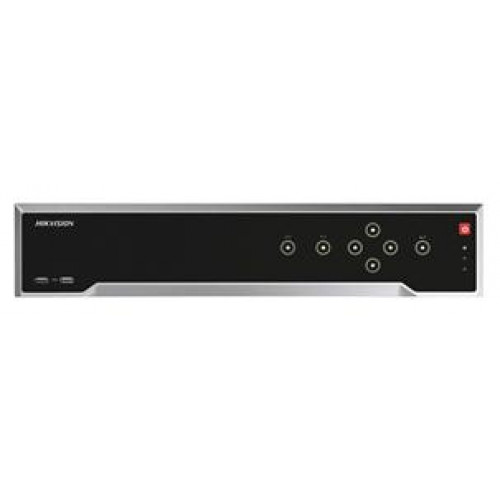

Hikvision DS-7700NI-I4/16P (B) Embedded Plug & Play 4K NVR Fortus
- Third-party network cameras supported
- Up to 12 Megapixels resolution recording
- Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840×2160) resolution
- 16/32-ch network cameras can be connected with
- 160M/256M incoming bandwidth
- Up to 4 SATA interfaces
- Plug & Play with up to 16 independent PoE network interfaces
- Support dual-os to ensure high reliability of system running
- Support various VCA detection alarm and VCA search
- Support H.265/H.264/MPEG4 video formats
£598.95
FREE SHIPPING
All over Gibraltar
FREE COLLECTION AT SMARTHOME
In a few minutes
SECURE PAY
By credit card
| Cameras | |
| Product Description | Hikvision Embedded Plug & Play 4K NVR |
| Specifications | |
| Alarm Input/Output | Alarm in/out 16/4 |
| Alarm Input/Output | 16/4 |
| Audio Channels | 1-ch, RCA (Linear, 1kΩ) |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Dimensions | 445 × 390 ×70 mm ( 17.5"× 15.3" × |
| HDMI/VGA Output | Yes |
| Incoming Bandwidth | 160Mbps |
| IP Video Input | 16-ch |
| Monitor Outputs | HDMI & VGA |
| Network Interface | 8 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
| Operating Conditions | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| PoE Switch (Built In) | 8/16 independent PoE network interfaces are provided |
| Power Consumption | ≤ 20 W (without enabling PoE) |
| Power over Ethernet | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Power Supply | 100 to 240 VAC |
| Recording Resolution | Up to 12MP |
| Resolution | 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Serial Interface | 1 RS-485 (half-duplex), 1 RS-232, 1 keyboard (optional) |
| Storage | 4 SATA interfaces for 4HDDs 24TB max storage |
| Two-way Audio Input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| USB interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Weight | ≤ 5 kg |
