Ci5160REF
Ci5160REF
Features KEF’s patented Uni-Q driver array
The standards of architectural speakers have been reset forever. We introduce the in-wall KEF Ci5160REF-THX – the newest addition to THE REFERENCE family, meeting KEF’s standards for Extreme Theatre as well as THX Ultra Certification.
*This product may take 12-14 weeks for delivery.
£8,500.00
Available on back-order
FREE SHIPPING
All over Gibraltar
FREE COLLECTION AT SMARTHOME
In a few minutes
SECURE PAY
By credit card
Ci5160REF-THX

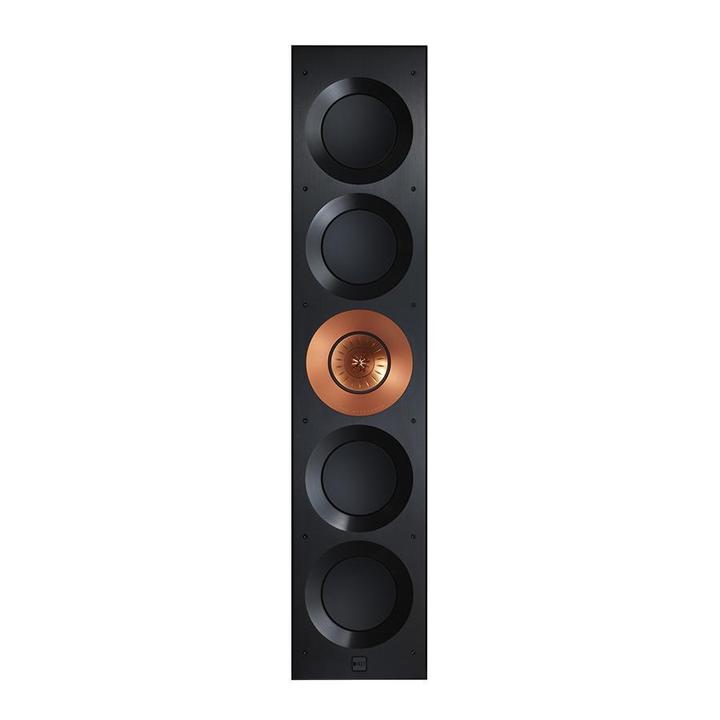

The Ci5160REF-THX is engineered with a massive aluminium baffle to eliminate vibration and is the perfect platform for the 125mm (5 inch) MF/HF Uni-Q driver array with 25mm (1 inch) vented aluminium dome tweeter and four 160mm woofers.
Uni-Q driver array
At the heart of the Ci5160REF-THX is the 11th generation of the KEF’s signature innovation: the Uni-Q point source MF/HF driver array. With a 25mm vented aluminium dome tweeter at the exact acoustic centre of a 125mm mid-range driver, both act as a single source that floods the listening space evenly with a flawless natural sound field.
Bass drivers
Like everything else about THE REFERENCE, the bespoke 160mm LF driver optimised for use in-wall, is a class apart. With a massive vented magnet assembly and a large aluminium wire voice coil driving an exceptionally light, stiff and strong alloy cone, the dynamics and power handling are superb.
Crossover
KEF engineers computer-modelled the ideal crossover networks before exhaustively auditioning every high-grade component to select those with the lowest distortion and the smoothest response. Perfectionism takes time, but the difference is clear. Nothing is overlooked – the HF and LF crossovers are even mounted on separate boards to minimise crosstalk.
SPECIFICATIONS
Nominal Impedance
4 Ohms
Sensitivity
90dB (2.83V/ 1m)
Frequency Response
40Hz - 28kHz (±6dB) open backed
Crossover Frequencies
400Hz, 2.8kHz
Drive Units
LF: 4 x 160mm (6.5 in.)
MF: 125mm (5.25 in.) Uni-Q
HF: 25mm (1 in.)
MF: 125mm (5.25 in.) Uni-Q
HF: 25mm (1 in.)
Recommended Amplifier Power
40 - 500W
Features
Uni-Q Array
Product External Dimension (H X W X D)
1070 x 230 x 105.7 mm (42.13 x 9.06 x 4.16 in.)
Cut-out Dimensions (H X W)
1052 x 209mm (41.42 x 8.23 in.)
Mounting Thickness
Ceiling Thickness (Maximum): 40mm (1.58 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface
99mm (3.9 in.)
Optional Rough In Frame
RIF5160L
Net Weight
22.0 kg (48.5 lbs)
Unit Measurement
Piece
